Description
- Butted inner layer in 2-layer grease duct applications
- Lightweight and thin, for ease of installation and space saving, while allowing custom installation applications with multiple layers where needed
- Proven alternative to 1- and 2-hour fire resistant rated shaft enclosures for grease ducts
- Zero clearance to combustible throughout the entire enclosure system
Thin, lightweight and flexible, 3M Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts.
Lightweight, Thin and Low-Profile Protection
Our 3M™ Fire Barrier Duct Wrap 615+ is a fire-rated duct wrap consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Because the blanket is adhered to the foil scrim it will resist wrapping and slumping. This non-asbestos wrap installs easily due to its high flexibility, low weight and thin profile – making it an ideal choice for duct enclosure systems. It is a proven alternative to 1- and 2-hour fire resistant shaft enclosures for grease ducts. 3M™ Fire Barrier Duct Wrap 615+ performs in temperatures up to 2192°F/1200°C.
3M™ Fire Barrier Duct Wrap 615+ is the only fire-rated duct wrap product you’ll ever need to help protect both grease ducts and air ducts while passing the necessary fire tests to achieve up to 2-hour fire-resistance requirements. It is third party certified to ASTM E2336 (grease duct test standard) and ISO 6944 (air duct test standard). It is tested and listed with UL and Intertek, meets IBC, IMC, UMN, NFPA and other key life safety codes. It is listed by California State Fire Marshall (listing No. 2440-0941:5555).
Recommended Applications
- Fire resistive enclosure for commercial kitchen grease ducts
- Stair pressurization ducts
- Life safety air and ventilation ducts
Trusted 3M Fire Barrier
The 3M Fire Barrier Duct Wrap 615+ is a reliable fire protection solution designed specifically for duct applications. This product offers a proven alternative to traditional fire-resistant shaft enclosures, ensuring safety and compliance.
Its model 615+ is recognized for its effectiveness in fire protection, making it a preferred choice for commercial and industrial use. The brand 3M guarantees quality and performance in fire safety products.
Lightweight Thin Profile
This duct wrap is lightweight and thin, measuring 48 inches by 25 feet per roll. Its low-profile design allows for easy installation and saves space, which is crucial in tight ductwork areas.
The thinness of the wrap also enables custom installation with multiple layers if needed, providing flexibility without adding bulk. This makes it ideal for complex duct systems.

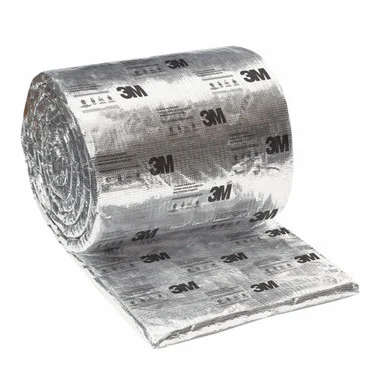

Flexible Roll Format
Supplied in a convenient roll format, the 3M Fire Barrier Duct Wrap 615+ comes as one roll per case. This packaging supports efficient handling and storage on job sites.
The roll format also allows installers to cut and fit the wrap precisely to duct dimensions, reducing waste and ensuring a tight, secure fit around grease and ventilation ducts.
High Temperature Resistance
The wrap withstands temperatures up to 2192°F (1200°C), making it suitable for high-heat environments like commercial kitchen grease ducts. This capability ensures long-lasting fire protection under extreme conditions.
Its inorganic fiber blanket construction encapsulated with foil scrim prevents slumping and maintains integrity during fire exposure, enhancing safety and durability.
Certified Fire Protection
3M Fire Barrier Duct Wrap 615+ meets rigorous fire safety standards, including ASTM E2336 and ISO 6944. It is UL and Intertek listed, complying with key codes like IBC, IMC, and NFPA.
Additionally, it is listed by the California State Fire Marshall, providing confidence that it meets strict regulatory requirements for grease and air duct fire resistance.
Here are some practical sizing and packaging details for the 3M Fire Barrier Duct Wrap 615+:
- Dimensions: 48 inches by 25 feet per roll
- Pack size: 1 roll per case
