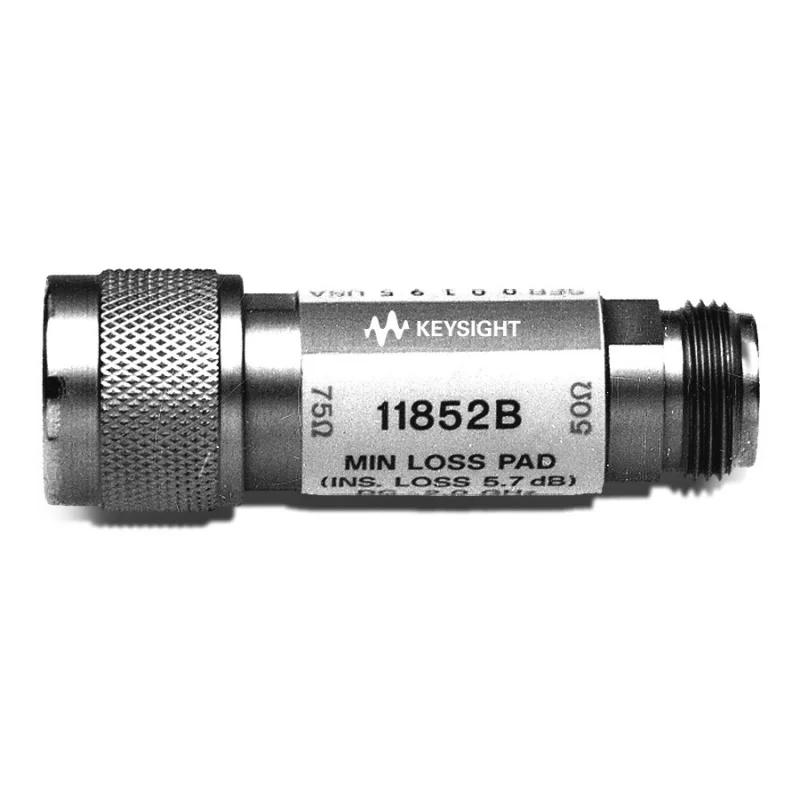

Keysight 11852B/004 Adapter, 50 To 75 Ohms

Description

Connector Type: 50-ohm type-N (f) to 75-ohm type-N (m) Frequency Range: DC to 3 GHz Return Loss:> 27 dB Electrical Length: 50.2 mm (1.98 in) Overall Length: 60.1 mm (2.37 in) Diameter: 22.0 mm (0.87 in) Reference Plane to Reference Plane Length (nominal): 50.2 mm (1.98 in) Insertion Loss: 5.7 dB, typical

The Keysight 11852B is an instrument-grade, 50-ohm type-N female to 75-ohm type-N male adapter. This product is also available in a 50-ohm type-N male to 75-ohm type-N female configuration. The 11852B Option 004 has a 50 Ohm Type-N (m) and 75 Ohm Type-N (f) connector.
