Siglent SHA860-PU Pulse Profile Analysis Option
-
For use with SHA860 Series Spectrum Analyzers
-
Detailed Pulse Measurements: Measure pulse width, rise/fall time, pulse period, duty cycle, and pulse center timing with high precision.
-
Advanced Overshoot/Undershoot Analysis: Quantify pre- and post-transition overshoots and undershoots to evaluate pulse signal quality.
-
Multi-Trace Display: Supports up to 6 traces with various detectors including Positive Peak, Negative Peak, Sample, Average, and Normal.
-
Flexible Analysis: View and analyze key parameters such as peak power, trace average, wave average, and pulse average.

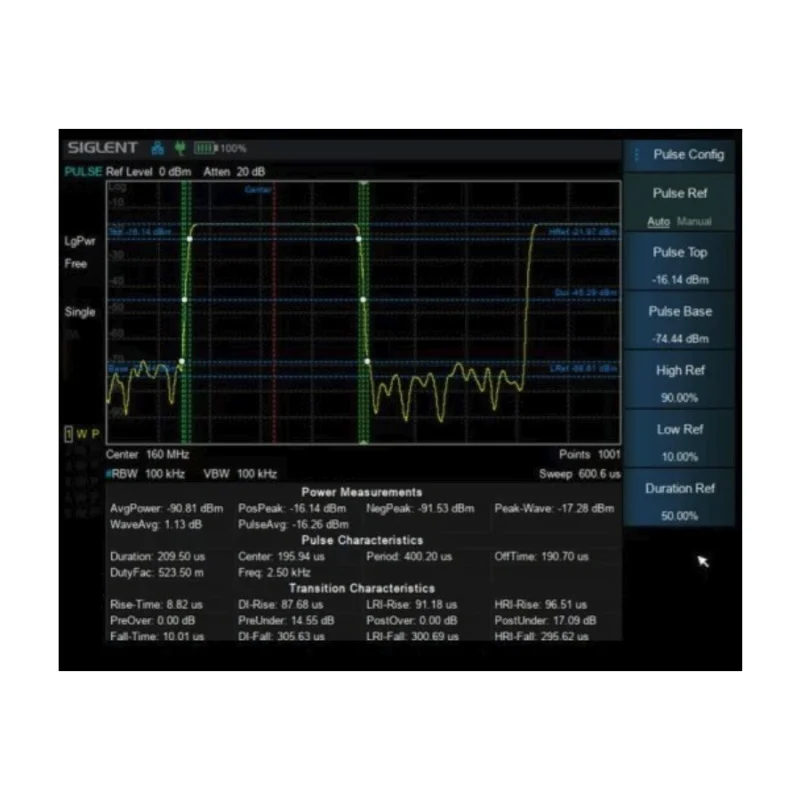

Enhance the Siglent SHA860A Series of Handheld Signal Analyzer with the SHA860-PU pulse profile license. The pulse analysis feature utilizes 10,001 data points to assess power levels, pulse transitions, and signal properties across various detection modes—including positive/negative peak, sample, average, and standard. This enables thorough verification of RF device performance under real-world operating conditions.
