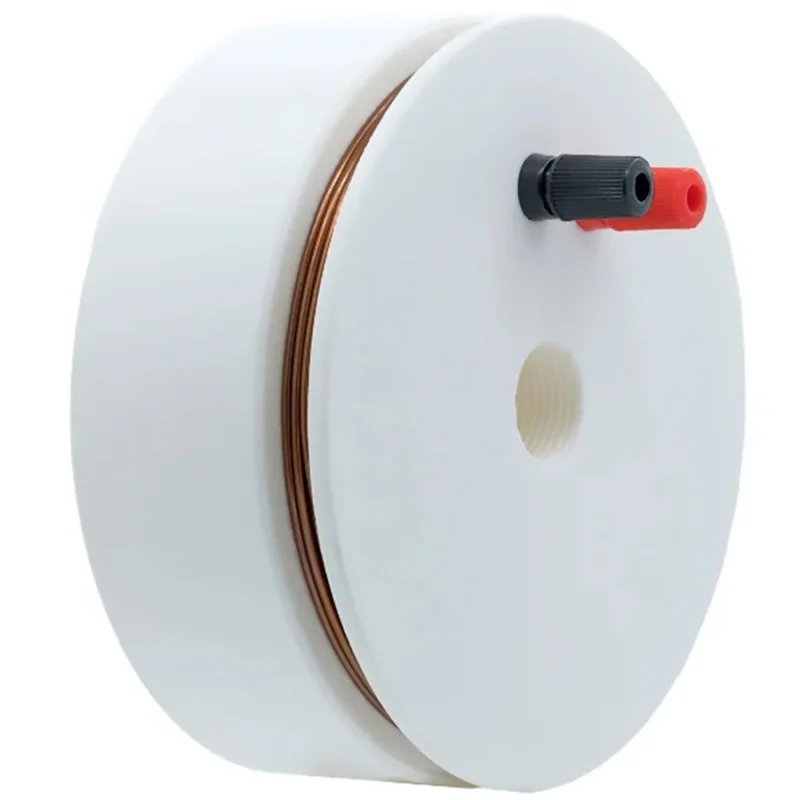

Tekbox Tbrs101-Tx Radiating Loop, 30 Hz – 100 Khz, 12 Awg, 50 Ohm, Mil-Std-461G, Rs101, Tbrs Series

Description

Specifications

• Type: Radiating Loop Antenna
• Frequency range: 30 Hz–100 KHz
• Standards: MIL-STD-461G / RS101
• Loop Diameter: 12cm
• Loop construction: 20 turns of 12 AWG Gauge 2mm copper wire
• DC resistance of the loop coil: 50 mΩ (Nominal)
• Self inductance of the loop coil: 90 µH
• Input connector: Male banana plugs
• Mechanical Dimensions (No mounting pole): L x W x H: 8.2 cm x 15.2 cm x 15.2 cm (3.23” x 5.98” x 5.98”)
• Mechanical Dimensions (mounting pole): L x W x H: 38 cm x 15.2 cm x 15.2 cm (14.96” x 5.98” x 5.98”)
• Weight: 0.5 kg (1.1 lbs)

The TBRS101-RX Field Monitoring Loop consists of a 4.1 cm diameter coil with 51 turns of 7 strand 41 AWG Litz wire inside a shielded body. The DC resistance of the loop winding is 4.1 ohms. The loop receives magnetic field radiation normal to the containing plane 5cm from the TBRS101-TX Radiating Loop winding and produces a voltage signal proportional to the intensity of the B-field/H-field radiation at the loop’s output port.
