Description

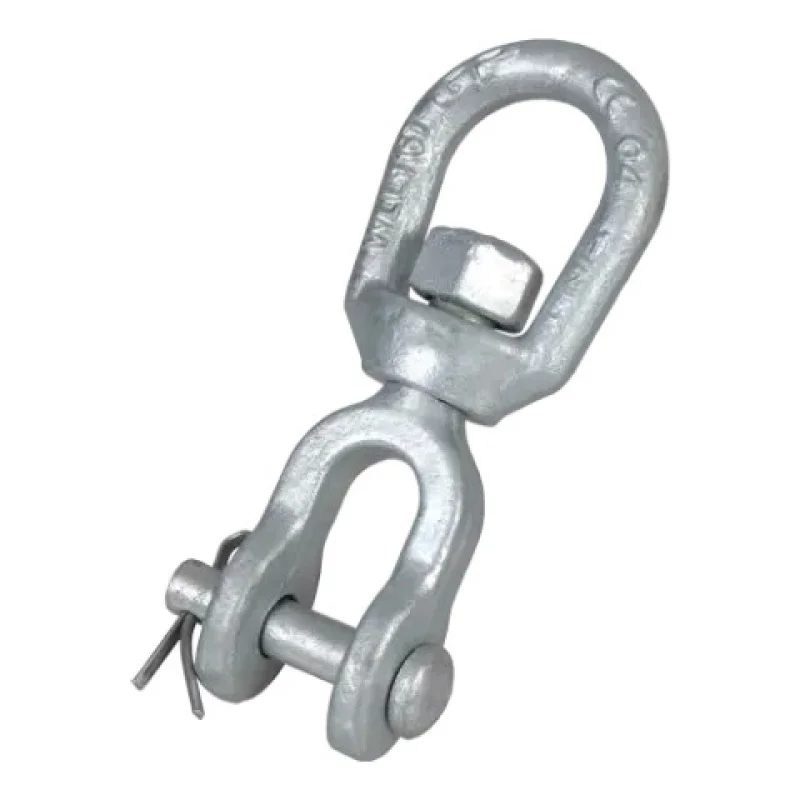

The Van Beest Green Pin® G-7723 Swivel is a heavy-duty jaw and eye swivel built for applications that require rotational alignment under tension. It features a secure jaw fitting with a safety cotter pin and an enclosed eye connection on the opposite end. This design is ideal for rigging scenarios where in-line movement and removable jaw attachment are critical.
Manufactured from high-tensile quenched and tempered steel and finished with hot-dip galvanizing, the G-7723 meets US Federal Spec. RR-C-271, Type VII, Class 3. With a 5:1 safety factor and optional certification (2.1 or 2.2), it offers dependable performance for demanding field use.
Features & Benefits:
- Jaw & Eye design for quick connect/disconnect with secure cotter pin.
- Hot-dip galvanized finish for excellent corrosion resistance.
- Forged from high-tensile steel and heat treated for maximum strength.
- Safety factor: Minimum Breaking Load is 5x WLL
- Conforms to US Fed. Spec. RR-C-271, Type VII, Class 3
- Available certifications: 2.1 and 2.2
Specifications:
- Working Load Limit Range: 0.39 to 20.5 metric tons
- Sizes Available: 6 mm to 38 mm diameter
- Jaw Pin Diameters: 6 mm to 50 mm
- Material: Quenched and tempered high-tensile steel
- Finish: Hot-dip galvanized
The G-7723 Jaw & Eye Swivel is an ideal choice for dynamic rigging applications where adjustable positioning and removable jaw connections are required. Built for strength, flexibility, and long-term reliability in tough environments.
